Quality Trailers - 20' Model P Tag-a-long Deckover

* 10,000 GVWR     * 12,0000 GVWR     * 14,000 GVWR

10,000 GVWR

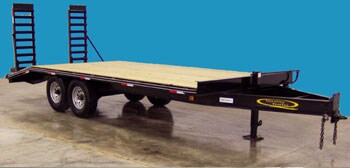

20' Model P Tag-a-long Deckover - 10,000 GVWR
20' Model P Tag-a-long Deckover - 10,000 GVWR
 Click to Enlarge
Specifications
  • G.V.W.R: 10,000 lb.
  • Deck Length: 16' + 4' Dovetail
  • Deck Height: 32
  • Deck Width: 102
  • Electrical: DOT Approved Lights, Wiring, and Connectors
  • Frame: 8" I-beam with Stake pockets and Rub Rail.
  • Dovetail: 4' Wood
  • Fenders:
  • Upper Deck:
  • Lower Deck:
  • Side Rail:
  • Brakes: All Wheel Electric Brakes with Breakaway Kit
  • Tongue: Cold Form with Standard chain box and lock lid.
  • Tailgate:
  • Tires: H78/15 LRD (Bias)(2,540 lb.)
  • Wheels: Silver or White Mod
  • Floor: 2
  • Jack: 7,000# Drop Foot
  • Coupler: Adj. 2 5/16 ball or pintle ring
  • Axles: Two 5,200# EZ Lube Axles
  • Safety Chains: Heavy Duty Safety Chains
  • Suspension: 3,000# Double Eye
  • Ramps: 60"x20" HD Flip-Up Ramps 9" Adjustable left to right
  • Toolbox:
  • Tie Downs:
  • Finish: Primed, Two Coats of Automotive Grade Acrylic Enamel, Pin Striped
Options
  • Cleated Dovetail (Call 877-444-4916 for details!)
  • Upgrade to Radial (Call 877-444-4916 for details!)
  • Extra Length (per 2') (Call 877-444-4916 for details!)
  • Pop-Up Cleated Dovetail (Call 877-444-4916 for details!)
  • Spare Tire and Rim (bias) (Call 877-444-4916 for details!)
  • Adjustable Ball Coupler & Pintle (Call 877-444-4916 for details!)
  • Spring Assist on Ramps (Call 877-444-4916 for details!)
  • Dual Jacks (Call 877-444-4916 for details!)
  • Third Ramp (Call 877-444-4916 for details!)
  • Upgrade to Radial (Call 877-444-4916 for details!)
  • Spare Tire and Rim(radial) (Call 877-444-4916 for details!)
  • Spare Tire and Rim (bias) (Call 877-444-4916 for details!)
  • Spare Tire and Rim (radial) (Call 877-444-4916 for details!)
  • Load Range G tire upgrade (3,750 lb.) (Call 877-444-4916 for details!)
  • Spare Tire and Rim (radial) (Call 877-444-4916 for details!)
  • Load Range G spare (Call 877-444-4916 for details!)


12,000 GVWR

20' Model P Tag-a-long Deckover - 12,000 GVWR
20' Model P Tag-a-long Deckover - 12,000 GVWR
 Click to Enlarge
Specifications
  • G.V.W.R: 12,000 lb
  • Deck Length: 16' + 4' Dovetail
  • Deck Height: 35
  • Deck Width: 102
  • Electrical: DOT Approved Lights, Wiring, and Connectors
  • Frame: 8" I-beam with Stake pockets and Rub Rail.
  • Dovetail: 4' Wood
  • Fenders:
  • Upper Deck:
  • Lower Deck:
  • Side Rail:
  • Brakes: All Wheel Electric Brakes with Breakaway Kit
  • Tongue: Cold Form with Standard chain box and lock lid.
  • Tailgate:
  • Tires: 750/16 LRE Bias (2,780 lb.)
  • Wheels: Silver or White Mod
  • Floor: 2
  • Jack: 12,000# Drop Foot
  • Coupler: 2-1/2 Pintle Ring or 2-5/16 Adjustable Ball Coupler
  • Axles: Two 6,000# EZ Lube Axles
  • Safety Chains: Heavy Duty Safety Chains
  • Suspension: 3,500# Slipper Springs
  • Ramps: 60"x20" HD Flip-Up Ramps 9" Adjustable left to right
  • Toolbox:
  • Tie Downs:
  • Finish: Primed, Two Coats of Automotive Grade Acrylic Enamel, Pin Striped
Options
  • Cleated Dovetail (Call 877-444-4916 for details!)
  • Upgrade to Radial (Call 877-444-4916 for details!)
  • Extra Length (per 2') (Call 877-444-4916 for details!)
  • Pop-Up Cleated Dovetail (Call 877-444-4916 for details!)
  • Spare Tire and Rim (bias) (Call 877-444-4916 for details!)
  • Adjustable Ball Coupler & Pintle (Call 877-444-4916 for details!)
  • Spring Assist on Ramps (Call 877-444-4916 for details!)
  • Dual Jacks (Call 877-444-4916 for details!)
  • Third Ramp (Call 877-444-4916 for details!)
  • Upgrade to Radial (Call 877-444-4916 for details!)
  • Spare Tire and Rim(radial) (Call 877-444-4916 for details!)
  • Spare Tire and Rim (bias) (Call 877-444-4916 for details!)
  • Spare Tire and Rim (radial) (Call 877-444-4916 for details!)
  • Load Range G tire upgrade (3,750 lb.) (Call 877-444-4916 for details!)
  • Spare Tire and Rim (radial) (Call 877-444-4916 for details!)
  • Load Range G spare (Call 877-444-4916 for details!)


14,000 GVWR

20' Model P Tag-a-long Deckover - 14,000 GVWR
20' Model P Tag-a-long Deckover - 14,000 GVWR
 Click to Enlarge
Specifications
  • G.V.W.R: 14,000 lb
  • Deck Length: 16' + 4' Dovetail
  • Deck Height: 35
  • Deck Width: 102
  • Electrical: DOT Approved Lights, Wiring, and Connectors
  • Frame: 8" I-beam with Stake pockets and Rub Rail.
  • Dovetail: 4' Wood
  • Fenders:
  • Upper Deck:
  • Lower Deck:
  • Side Rail:
  • Brakes: All Wheel Electric Brakes with Breakaway Kit
  • Tongue: Cold Form with Standard chain box and lock lid
  • Tailgate:
  • Tires: 235/85 R16 (3,042 lb.)
  • Wheels: Silver or White Mod
  • Floor: 2
  • Jack: 12,000# Drop Foot
  • Coupler: Adj. 2 5/16 or pintle ring
  • Axles: Two 7,000# EZ Lube Axles
  • Safety Chains: Heavy Duty Safety Chains
  • Suspension: 3,500# Slipper Springs
  • Ramps: 60"x20" HD Flip-Up Ramps 9" Adjustable left to right
  • Toolbox:
  • Tie Downs:
  • Finish: Primed, Two Coats of Automotive Grade Acrylic Enamel, Pin Striped
Options
  • Cleated Dovetail (Call 877-444-4916 for details!)
  • Upgrade to Radial (Call 877-444-4916 for details!)
  • Extra Length (per 2') (Call 877-444-4916 for details!)
  • Pop-Up Cleated Dovetail (Call 877-444-4916 for details!)
  • Spare Tire and Rim (bias) (Call 877-444-4916 for details!)
  • Adjustable Ball Coupler & Pintle (Call 877-444-4916 for details!)
  • Spring Assist on Ramps (Call 877-444-4916 for details!)
  • Dual Jacks (Call 877-444-4916 for details!)
  • Third Ramp (Call 877-444-4916 for details!)
  • Upgrade to Radial (Call 877-444-4916 for details!)
  • Spare Tire and Rim(radial) (Call 877-444-4916 for details!)
  • Spare Tire and Rim (bias) (Call 877-444-4916 for details!)
  • Spare Tire and Rim (radial) (Call 877-444-4916 for details!)
  • Load Range G tire upgrade (3,750 lb.) (Call 877-444-4916 for details!)
  • Spare Tire and Rim (radial) (Call 877-444-4916 for details!)
  • Load Range G spare (Call 877-444-4916 for details!)


All of our construction trailers are of the highest quality and come with standard features and a variety of options. We carry a full line of construction trailers from manufacturers that you know and trust including Pace American, Quality Trailers and Econoline. Contact Us today to learn more about our complete line of construction trailers and to find the right trailer to fit your hauling needs.
